NIC 线性导轨夹紧装置，简称NIC 导轨钳制器，具有简单可靠、性价比高等特点。可应用于固定滑台、定位及防止振动、机械挡停器等领域。
减少占用空间，满足小空间安装需求。
手柄360°可调节，不同位置均可安装使用。
减少安装人员安装难度。
减少设备安装、维护成本。
满足特殊领域使用要求。

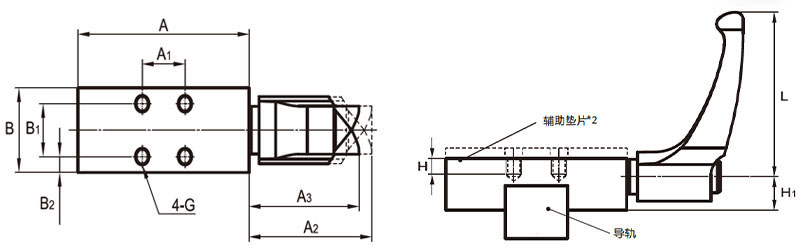

单位：mm
| 型号 | A | A1 | A2 | A3 | B | B1 | B2 | G | H | H1 | L | 紧固 扭矩 N.m |
夹紧力 *1N |
质量 Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FF1501A | 47 | 17 | 34 | 30.5 | 25 | 17 | 4 | M4 | 5 | 12 | 44 | 5 | 550 | 0.13 |
| FF2001A | 60 | 19 | 42 | 38.5 | 28 | 19 | 4.5 | M5 | 8 | 13 | 63 | 7 | 750 | 0.25 |
| FF2501A | 70 | 22 | 42 | 38.5 | 32 | 22 | 5 | M6 | 8 | 16 | 63 | 7 | 750 | 0.42 |
| FF3001A | 90 | 28 | 50.5 | 45 | 45 | 28 | 8.5 | M6 | 10 | 21 | 78 | 15 | 1500 | 0.9 |
| FF3501A | 100 | 30 | 50.5 | 45 | 47 | 30 | 8.5 | M8 | 12 | 21.5 | 78 | 15 | 1500 | 1.2 |
| FF4501A | 130 | 26 | 80 | 75 | 47 | 26 | 10.5 | M10 | 14 | 28 | 108 | 23 | 2000 | 1.95 |
| FE5501A | 140 | 30 | 70 | 65 | 49 | 30 | 9.5 | M14 | 14 | 37.5 | 92 | 22 | 2000 | 1.8 |
| FE6501A | 160 | 35 | 70 | 65 | 64 | 35 | 14.5 | M16 | 20 | 44.2 | 92 | 22 | 2000 | 2.5 |
*1：按照所示的紧固扭矩，拧紧后的值。
*2：通过辅助垫片保持夹紧装置的高度与导轨滑块的组合高度一致。
*3：FE5501A，FE6501A 本体材质为铝，FF材质代表本体材质为钢。

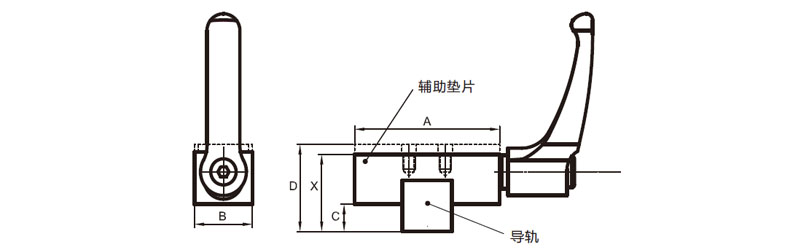

本表以部分导轨为例，如需适配其他品牌导轨，请参考本表或者联系我们。
| 导轨 系列 |
导轨尺寸 | 滑块类别 | 规格 | 垫片 | 安装尺寸 | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | X | |||||
| HG/QH | 15 | HGH15/QHH15 | FF1501A | PFF-15-4 | 47 | 25 | 6 | 28 | 24 |
| HG/QH | 15 | HGL15/HGW15/QHW15 | FF1501A | - | 47 | 25 | 6 | 24 | 24 |
| HG/QH | 20 | HGH20/HGE20/QHH20/QHW20 | FF2001A | - | 60 | 28 | 8 | 30 | 30 |
| HG/QH | 25 | HGH25/QHH25 | FF2501A | PFF-25-4 | 70 | 32 | 10 | 40 | 36 |
| HG/QH | 25 | HGL25/HGW25/QHW25 | FF2501A | - | 70 | 32 | 10 | 36 | 36 |
| HG/QH | 30 | HGH30/QHH30 | FF3001A | PFF-30-3 | 90 | 45 | 10 | 45 | 42 |
| HG/QH | 30 | HGL30/HGW30/QHW30 | FF3001A | - | 90 | 45 | 10 | 42 | 42 |
| HG/QH | 35 | HGH35/QHH35 | FF3501A | PFF-35-7 | 100 | 47 | 13 | 55 | 48 |
| HG/QH | 35 | HGL35/HGW35/QHW35 | FF3501A | - | 100 | 47 | 13 | 48 | 48 |
| HG/QH | 45 | HGH45/QHH45 | FF4501A | PFF-45-10 | 130 | 47 | 17 | 70 | 60 |
| HG/QH | 45 | HGL45/HGW45/QHW45 | FF4501A | - | 130 | 47 | 17 | 60 | 60 |
| EG/QE | 15 | EGH15/EGW15/QEH15/QEW15 | FF1501A | PFF-15-3 | 47 | 25 | 3.5 | 24 | 21 |
| EG/QE | 20 | EGH20/EGW20/QEH20/QEW20 | FF2001A | - | 60 | 28 | 6 | 28 | 28 |
| EG/QE | 25 | EGH25/EGW25/QEH25/QEW25 | FF2501A | PFF-25-1 | 70 | 32 | 6 | 33 | 32 |
| EG/QE | 30 | EGH30/EGW30/QEH30/QEW30 | FF3001A | PFF-30-3 | 90 | 45 | 7 | 42 | 39 |
| EG/QE | 35 | EGH35/EGW35/QEH35/QEW35 | FF3501A | PFF-35-2 | 90 | 45 | 7 | 42 | 39 |
| RG/QR | 15 | RGH15 | FF1501A | PFF-15-3 | 47 | 25 | 7.5 | 28 | 25 |
| RG/QR | 20 | RGH20/QRH20 | FF2001A | PFF-20-1 | 60 | 28 | 12 | 34 | 33 |
| RG/QR | 25 | RGH25/QRH25 | FF2501A | PFF-25-3 | 70 | 32 | 12 | 40 | 37 |
| RG/QR | 30 | RGH30/QRH30 | FF3001A | PFF-30-1 | 90 | 45 | 12 | 45 | 44 |
| RG/QR | 35 | RGH35/QRH35 | FF3501A | PFF-35-6 | 100 | 47 | 15 | 55 | 49 |
| RG/QR | 45 | RGH45/QRH45 | FF4501A | PFF-45-10 | 130 | 47 | 17 | 70 | 60 |
本表以THK导轨为例，如需适配其他品牌导轨，请参考本表或者联系我们。
| 导轨 系列 |
导轨尺寸 | 滑块类别 | 规格 | 垫片 | 安装尺寸 | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | X | |||||
| HSR | 15 | R/RM/YR/YRM | FF1501A | PFF-15-4 | 47 | 25 | 6 | 28 | 24 |
| HSR | 15 | A/AM/B/BM | FF1501A | - | 47 | 25 | 6 | 24 | 24 |
| HSR | 25 | R/RM/LR/LRM/YR/YRM | FF2501A | PFF-25-4 | 70 | 32 | 10 | 40 | 36 |
| HSR | 25 | A/AM/LA/LAM/CA/CAM/HA/HAM B/BM/LB/LBM/CB/CBM/HB/HBM |
FF2501A | - | 70 | 32 | 10 | 36 | 36 |
| HSR | 30 | R/RM/LR/LRM/YR/YRM | FF3001A | PFF-30-3 | 90 | 45 | 10 | 45 | 42 |
| HSR | 30 | A/AM/LA/LAM/CA/CAM/HA/HAM B/BM/LB/LBM/CB/CBM/HB/HBM |
FF3001A | - | 90 | 45 | 10 | 42 | 42 |
| HSR | 35 | R/RM/LR/LRM/YR/YRM | FF3501A | PFF-35-7 | 100 | 47 | 13 | 55 | 48 |
| HSR | 35 | A/AM/LA/LAM/CA/CAM/HA/HAM B/BM/LB/LBM/CB/CBM/HB/HBM |
FF3501A | - | 100 | 47 | 13 | 48 | 48 |
| SHS | 15 | C/LC/V/LV | FF1501A | PFF-15-2 | 47 | 25 | 4 | 24 | 22 |
| SHS | 15 | R | FF1501A | PFF-15-6 | 47 | 25 | 4 | 28 | 22 |
| SHS | 20 | C/LC/V/LV | FF2001A | PFF-20-1 | 60 | 28 | 7 | 30 | 29 |
| SHS | 25 | C/LC/V/LV | FF2501A | PFF-25-2 | 70 | 32 | 8 | 36 | 34 |
| SHS | 25 | R/LR | FF2501A | PFF-25-6 | 90 | 45 | 7 | 42 | 39 |
| SHS | 30 | C/LC/V/LV | FF3001A | PFF-30-3 | 90 | 45 | 7 | 42 | 39 |
| SHS | 30 | R/LR | FF3001A | PFF-30-6 | 90 | 45 | 7 | 45 | 39 |
| SHS | 35 | C/LC/V/LV | FF3501A | PFF-35-3 | 100 | 47 | 10 | 48 | 45 |
| SHS | 35 | R/LR | FF3501A | PFF-35-10 | 100 | 47 | 10 | 55 | 45 |
| SSR | 15 | XW/XWM/XV/XVM/XTB | FF1501A | PFF-15-3 | 47 | 25 | 3.5 | 24 | 21 |
| SSR | 20 | XW/XWM/XV/XVM/XTB | FF2001A | - | 60 | 28 | 6 | 28 | 28 |
| SSR | 25 | XW/XWM/XV/XVM/XTB | FF2501A | PFF-25-1 | 70 | 32 | 6 | 33 | 32 |
| SSR | 30 | XW/XWM | FF3001A | PFF-30-3 | 90 | 45 | 7 | 42 | 39 |
| SSR | 35 | XW | FF3501A | PFF-35-2 | 100 | 47 | 11.5 | 48 | 46 |
| SR | 15 | V/VM/WM/SB/SBM TB/TBM/MSV/MSW |
FF1501A | PFF-15-3 | 47 | 25 | 3.5 | 24 | 21 |
| SR | 20 | V/VM/WM/SB/SBM TB/TBM/MSV/MSW |
FF2001A | - | 60 | 28 | 6 | 28 | 28 |
| SR | 25 | V/VM/WM/SB/SBM/TB/TBM | FF2501A | PFF-25-1 | 70 | 32 | 6 | 33 | 32 |
| SR | 30 | V/VM/WM/SB/SBM/TB/TBM | FF3001A | PFF-30-3 | 90 | 45 | 7 | 42 | 39 |
| SR | 35 | V/VM/WM/SB/SBM/TB/TBM | FF3501A | PFF-35-2 | 100 | 47 | 11.5 | 48 | 46 |
| NR NRS |
30 | R/LR/A/LA/B/LB | FF3001A | PFF-30-1 | 90 | 45 | 5 | 38 | 37 |
| NR NRS |
35 | R/LR/A/LA/B/LB | FF3501A | PFF-35-1 | 100 | 47 | 8.5 | 44 | 43 |
| SVR SVS |
30 | R/LR/C/LC | FF3001A | PFF-30-1 | 90 | 45 | 5 | 38 | 37 |
| SVR SVS |
35 | R/LR/C/LC | FF3501A | PFF-35-1 | 100 | 47 | 8.5 | 44 | 43 |
| SRG | 25 | R/LR | FF2501A | PFF-25-3 | 70 | 32 | 11 | 40 | 37 |
| SRG | 30 | C/LC | FF3001A | - | 90 | 45 | 10 | 42 | 42 |
| SRG | 30 | R/LR | FF3001A | PFF-30-3 | 90 | 45 | 10 | 42 | 42 |
| SRG | 35 | R/LR | FF3501A | PFF-35-6 | 100 | 47 | 14 | 55 | 49 |
注：如需适配其它品牌导轨，请咨询本公司。
| 螺栓规格（强度等级8.8级以上） | 扭矩（Nm） |
|---|---|
| M4 | 2.8 |
| M5 | 5.5 |
| M6 | 9.5 |
| M8 | 23 |
| M10 | 46 |
*保留有修改技术参数的权利
